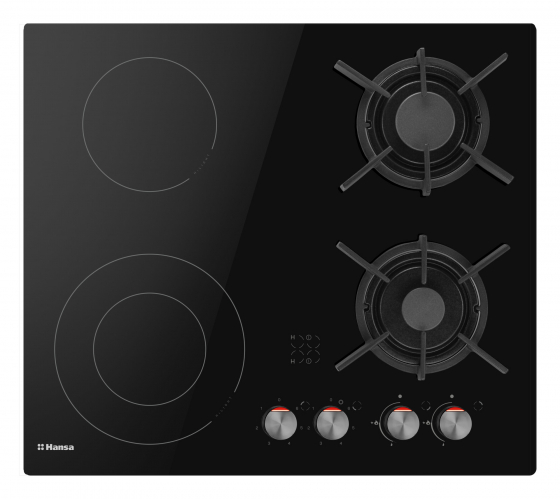

BHMS61414030

21447

Design of pan supports Separate	Gas spark ignition In Knobs	Front left heating zone dimension (cm) 12/21
Left front zone energy consumption FL 193.5 Wh/kg	Front left heating zone power rating (kW) 0.75/2.2	Left front zone type FL Radiant
Rear left heating zone dimension (cm) 14	Left rear zone energy consumption RL 193.5 Wh/kg	Rear left heating zone power rating (kW) 1.2
Left rear zone type RL Radiant	Pan supports quantity 2	Number of power levels 6
Front right heating zone dimension (cm) 4.6	Front right heating zone power rating (kW) 1	Right front zone type FR Gas
Rear right heating zone dimension (cm) 6.9	Right rear gas burner energy effciency 55.5 %	Rear right heating zone power rating (kW) 1.8	Right rear zone type RR Gas	Temperature limiter Yes	Hob energy consumption 193.5 Wh/kg
Gas hob energy effciency 55.5 %

Frequency 50	Connection cable colour White	Connection type 1N~230 V
Cut out size - depth 490 mm	Display color Red	Edge finish C-cut
Flame safety valve Yes	Gross volume 0.0517 m³	Total power of hob 3.4 kW
Net depth 522 mm	Net height 48 mm	Net weight 9.95 kg
Net width 592 mm	Number of heating elements 4	Type of plug or cable Euro 3x0.75mm2
Position of gas inlet Rear-middle-vertically	Connection cable Power cord with plug	Power cabel length 130 cm
Power Supply Voltage 230V	Total gas power of hob 2.8 kW
