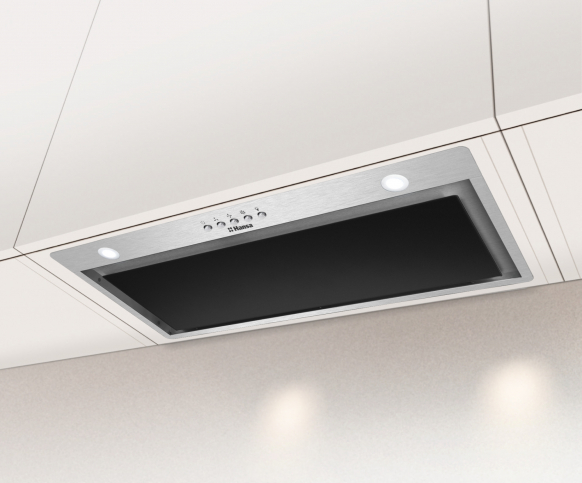

OMP6242BIH
1190512
Specification
FEATURES
| Accessories - | Air flaps Yes | FrameOn Yes |
| Panel - language version Pictograms | Protection class of electric shock I_Class | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 1 | Number of layers in grease filter 5 |
| Number of speed 3 | Type of control Push buttons | Type of grease filters Aluminium frame |
| Carbon filter type FWP 18 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 347 m3/h | Air flow at 2 speed - extractor by EN 61591 404 m3/h | |||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 445 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 445 m3/h | Air Flow at Minimum Speed in Normal Use 347 m3/h | |||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 244.8 m3/h | Air Pressure at Best Efficiency Point P BEP 242.3 Pa | Annual energy consumption 66.8 kWh | |||||||||||||||||||||||||||||
| Average Illumination of the Lighting System on the Cooking Surface - E middle 196 lux | Container qty 40'HQ 775 | Control panel on one side/two sides One side | |||||||||||||||||||||||||||||
| Country of Origin on Rating Label Made in PRC | Dimensions of grease filter 456 x 167 mm | Display color No | |||||||||||||||||||||||||||||
| Distance from light cover to wall 15 mm | Distance to electric hob 450 mm | Distance to gas hob 650 mm | |||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 116.7 W | Fluid Dynamic Efficiency - FDE hood 14.1 | Fluid Dynamic Efficiency Class D | |||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 76 % | Grease Filtering Efficiency Class C | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 49 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 445 m3/h | Motor unit rated power 150 W | Motor type/model E series | Net depth 277 mm | Net height max 300 mm | Net height min 300 mm | Net weight 9 kg | Net width 600 mm | Noise level at 1 speed - extractor by EN 60704-2-13 59 dB | Noise level at 2 speed - extractor by EN 60704-2-13 61 dB | Noise level at 3 speed - extractor by EN 60704-2-13 63 dB | Nominal Power of the Lighting System - W L 4 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power cabel length 120 cm | Power rating 154 W | Power Supply Voltage 230V | Power unit of main lighting 2 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Noise level 63 dB | Time Increase Factor - f 1.5 | Type of main lighting LED - other |
